FTI Finish Thompson Inc.

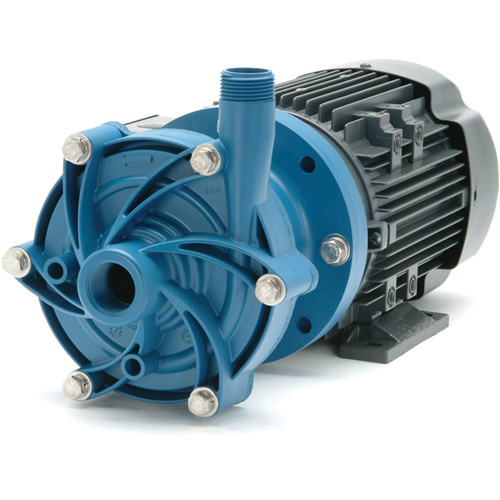

Magnetic Drive Pump with Carbon Bushing

Model: PUN294

Mfr. No.: DB6HP-M227

  • Magnetic Drive Pump with Carbon Bushing Ontario Packaging

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$1,957.00 / Each

0 In Stock

Manufacturer's Warranty

  • 5 Years

Intake Size

1"

Discharge Port Size

1"

Motor

1/2 HP

Suction Head

54'

Connection Type

NPT

Impeller Size

3.875"

Magnet Type

6-Pole

Material

Polypropylene (PPG)

Max. Flow

42 GPM

Power

208-230-460 V, 60 Hz

Max. Operating Temperature

180°F (82°C)

Max. Pressure

80 PSI

Country Of Origin

United States

  • Extended run dry ability (with carbon bushing)
  • High operating efficiency
  • Powerful neodymium magnets
  • Close-coupled design
  • Threaded NPT connections
  • Horizontal or vertical installation
  • Back pullout design
  • Mounts to IEC 56, 63, 71 B14 motor frames
  • Easy set, measurement free drive
  • CE certified
  • Working pressure to 60 psi (4.1 bar)
  • Specific gravity up to 1.8
  • Viscosity up to 50 cP
