King Canada

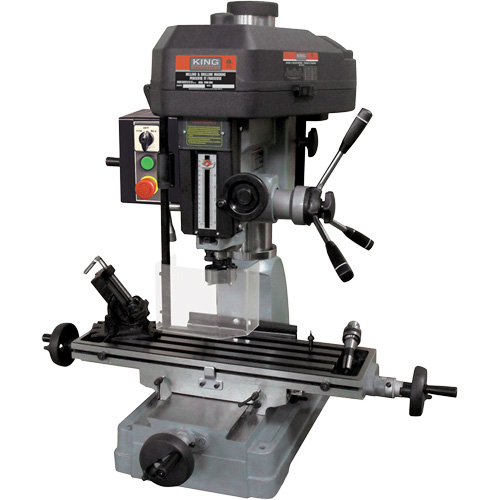

Milling Drilling Machine with Forward/Reverse, 12 Speeds, 1-1/4" Drilling Capacity

Model: TCV128

Mfr. No.: PDM-30R

  • Milling Drilling Machine with Forward/Reverse, 12 Speeds, 1-1/4" Drilling Capacity Ontario Packaging

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$3,803.00 / Each

0 In Stock

Includes

  • Milling drilling machine
  • 3" face cutter
  • 1/2" chuck with key
  • 3-1/2" angle vise
  • safety guard

Drilling Capacity

1-1/4"

No. Of Speeds

12

Table Size

8-1/4" W x 28-3/4" L

Overall Width

39"

Overall Length

43"

Overall Height

42"

Max. Distance Spindle Nose To Table

18-7/8"

Swing

16-1/2"

Spindle Taper

R8

Spindle Stroke

5"

Diameter Of Column

4-3/4"

RPM

150 - 2500

Face Mill Capacity

3"

End Mill Capacity

3/4"

Max. Longitudinal Travel

17"

Country Of Origin

Taiwan

  • Safety guard with limit switch protection
  • Magnetic line interruption switch needs a restart after a power failure
  • Pulley cover with limit switch protection
  • Spindle is equipped with four heavy-duty tapered roller bearings
  • Table control hand wheels have large micrometer dials graduated in .001"
  • Head swivels 360° and is easily raised and lowered
  • 11 amp motor
  • 5/8" T-slot on table
  • 220V, 1 phase, 60Hz
  • 7-1/4" Cross travel
