Lithonia Lighting

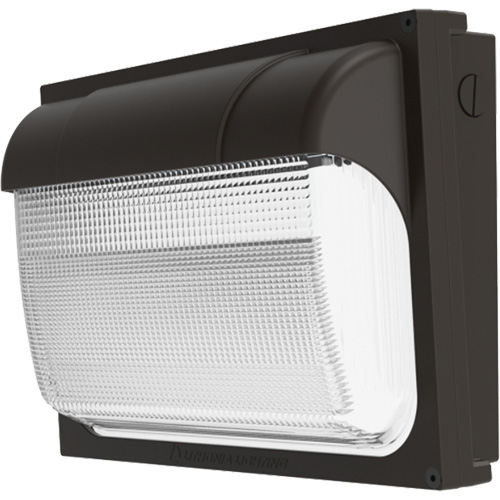

Contractor Select™ TWX ALO Adjustable Light Output Wall Pack, LED, 120 - 277 V, 54 W, 9" H x 13" W x 4.5" D

Model: XJ024

Mfr. No.: 268TUM

  • Contractor Select TWX ALO Adjustable Light Output Wall Pack, LED, 120 - 277 V, 54 W, 9" H x 13" W x 4.5" D Ontario Packaging

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$268.00 / Each

2 In Stock

Manufacturer's Warranty

  • 5 Year Limited

Bulb Type

LED

Voltage

120 - 277 V

Wattage

54 W

Overall Height

9"

Overall Width

13"

Overall Depth

4.5"

Housing Colour

Textured Dark Bronze

Lumens

1,450 - 6,950

Weight

11 lbs.

CCT Rating

4000K

  • Replaces 70W to 250W Metal Halide luminaires, providing energy savings
  • Same footprint as a standard HID wall pack, to easily cover the stain
  • Expected service life of more than 20 years
  • Two-piece die-cast aluminum housing to optimize thermal management through conductive and convective cooling
  • Door is hinged on the side and can be removed for easy installation
  • Housing is completely sealed against moisture and environmental contaminants (IP65) and is suitable for the hose-down applications
  • Exterior painted parts are protected by a zinc-infused super durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering
  • Tightly controlled multi-stage process ensures a 3 mils thickness for a finish that can withstand extreme climate changes without cracking or peeling
  • Advanced optical design uses both reflector and refractor technologies that work together to create superior illumination and further throw, getting the light where it is needed
  • US-made borosilicate glass refractor is specifically designed to maximize light extraction and create a fully luminous luminaire for a better nighttime look
  • Adjustable Light Output (ALO) feature allows the contractor to set the light output during installation to a level perfectly suited for the job site
  • Light engine consists of high-efficacy LEDs mounted to housing to maximize heat dissipation and promote long-life (up to L81/100,000 hours at 25°C)
  • Electronic driver has a power factor of >90%, THD <20%, and luminaire is 0-10V dimmable
  • CSA certified to U.S. and Canadian standards, IP65 rated for outdoor applications, and rated for -40°C minimum ambient temperature
